Overflow menu

Overflow menu in Storybook

Usage​

Overview​

The overflow menu indicates there is more available content in a UI object than can be displayed at once. Additional lists, options and functionality can be hidden in an expandable menu so as not to clutter the main interface.

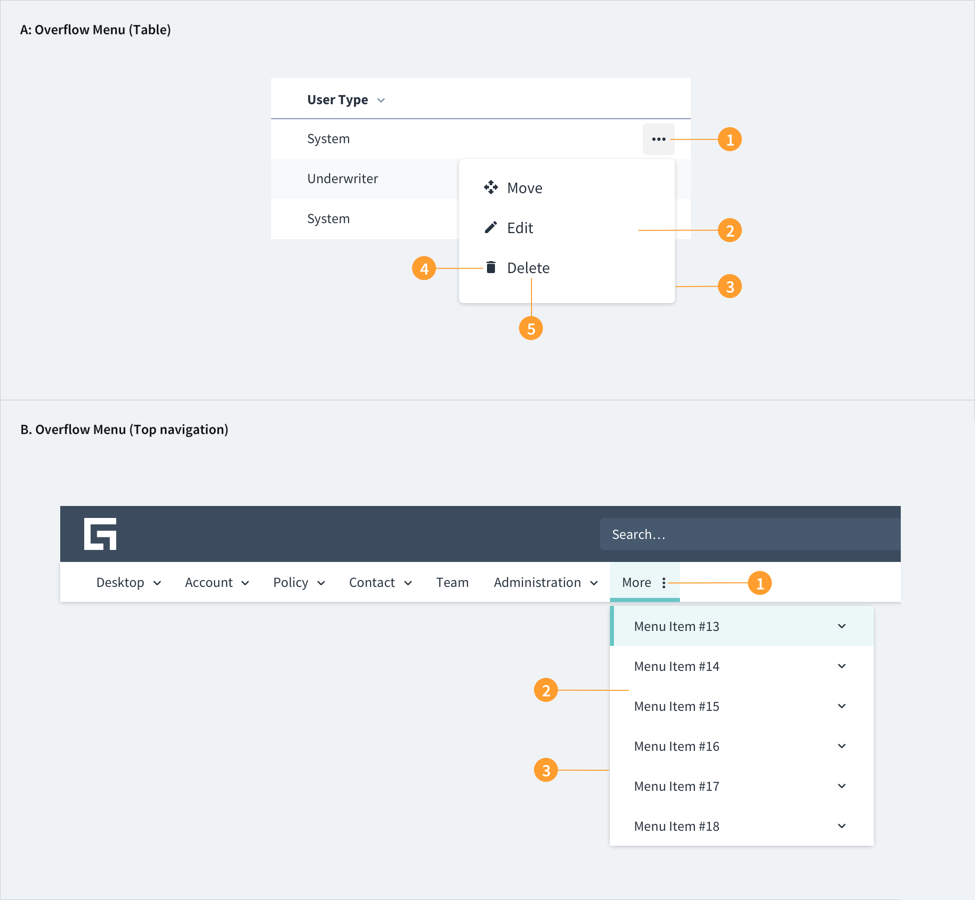

Anatomy​

overflow menu Formatting

  • A. Overflow menu in a table.
  • B. Overflow menu in a top nav.

The overflow menu is indicated with an ellipsis icon. It appears at the (right-hand) end of a row of navigation titles or on a content row.

A. Overflow menu (Table):​

  1. Ellipsis icon: The table overflow menu is indicated with an ellipsis icon which always appears on the right-hand side of a table row.
  2. Dropdown menu: The overflow menu consists of a list of additional interactions, e.g., tools/actions, e.g., delete, edit, duplicate (duplicate row).
  3. Dropdown menu shadow: A shadow is used as part of the overflow menu to clearly distinguish it from the background it's set against.
  4. Tools/actions icons: Iconography can be added to the overflow menu list items, providing a quick and clear indication of the associated functionality.
  5. Tools labels: Overflow menu list items are labeled according to the Jutro dropdown menu guidelines.

B. Overflow menu (Top nav):​

  1. Ellipsis icon: The top navigation overflow menu is indicated with an ellipsis icon which always appears on the right-hand side of a top nav strip.
  2. Dropdown menu: The overflow menu consists of a list of additional top navigation links.
  3. Dropdown menu shadow: A shadow is used as part of the overflow menu to clearly distinguish it from the background it's set against.

Best practices​

  • Always position the overflow menu (ellipsis) icon to the end of an object, (when start / end is left / right it will be on the right-hand side), to indicate additional content/functionality.
  • Use overflow menus to maintain clean user interfaces by hiding the secondary options in an expandable menu, or alternatively, to show the important actions in terms of engagement.
  • Make sure you include only those actions that are necessary to complete priority tasks and are contextually relevant and list them in order of frequency of use.
  • Use overflow menus to contain additional menu items or actions as they are incrementally/progressively added to the UI.
  • Do not use cascading menus.
  • Disable options that are not relevant in a given context.

Interactions​

Mouse​

  • An overflow menu ellipsis symbol is highlighted when hovered, indicating interactivity.
  • An overflow menu (ellipsis) symbol may be invisible until an associated object is hovered or clicked, for example, a table row, which helps draw attention to the inclusion of the overflow menu object and functionality.
  • Clicking on the overflow menu ellipsis symbol will produce a dropdown menu of content, by clicking off the menu anywhere the menu will disappear
  • Overflow menu items will appear highlighted with a blue background when hovered over; a single mouse click will trigger the action or link from the menu.

Keyboard​

The component is actionable through the Spacebar and Enter keys.

Screen reader​

The overflow menu component is part of the navigation menu and as such includes the role of "menuitem'. The WAI-ARIA role of aria-expanded="false' indicate that its default state is collapsed with extra content contained within it. This value toggles to true when the overflow menu is expanded.

UX writing considerations​

  • Text within an overflow menu should be direct and concise so that users can quickly decide on an action.
  • For actions that could cause a significant change to users' data, consider using a horizontal rule to separate that action and list it below the primary set of actions.

Accessibility​

The contrast ratio of textual elements against their background is above 4.5:1 as per WCAG 2.1 AA requirements. Non-textual content that needs to convey meaning (such as icons and keyboard focus visibility) has a contrast ratio of at least 3:1 with its adjacent colors. All content is visible and functional up to and including 400% without requiring scrolling in two dimensions.

This component has been validated to meet the WCAG 2.1 AA accessibility guidelines. However, changes made by the content author can affect accessibility conformance.
